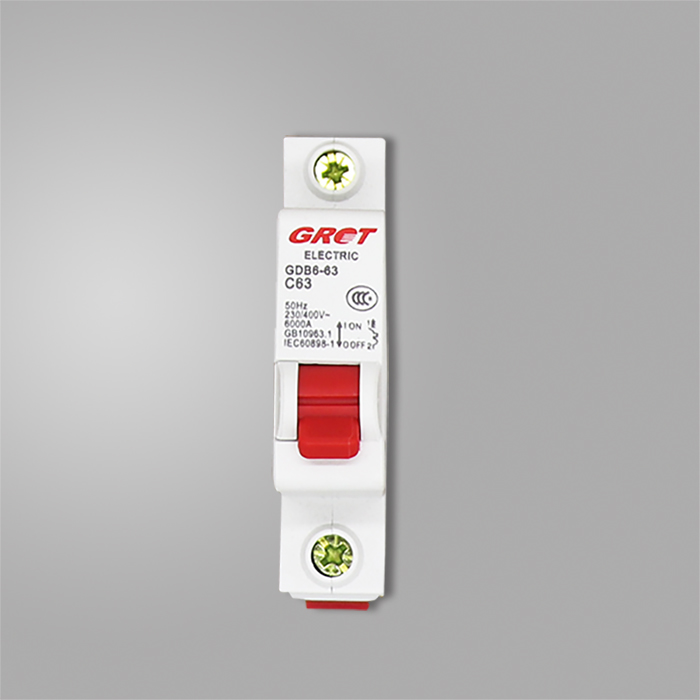

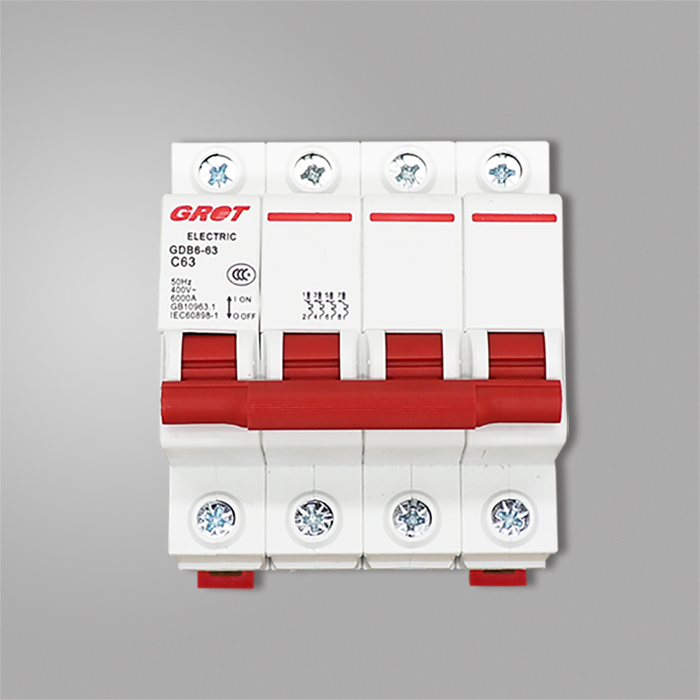

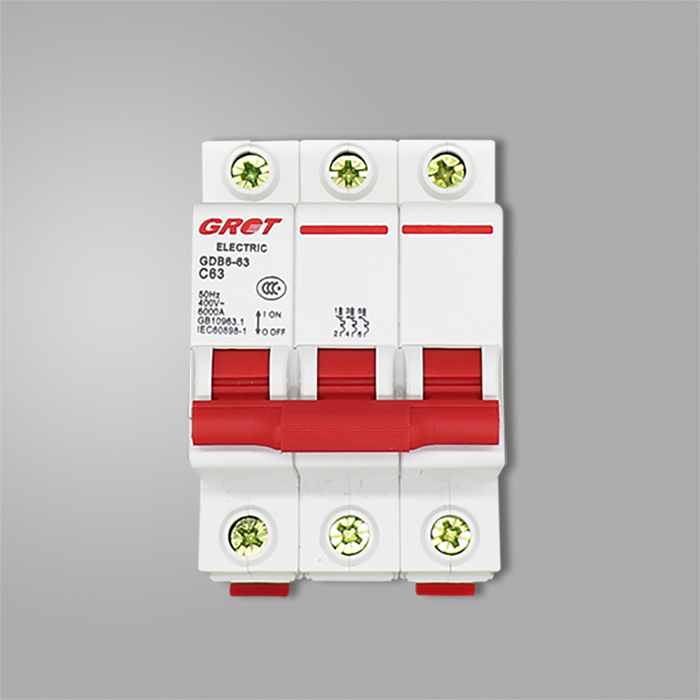

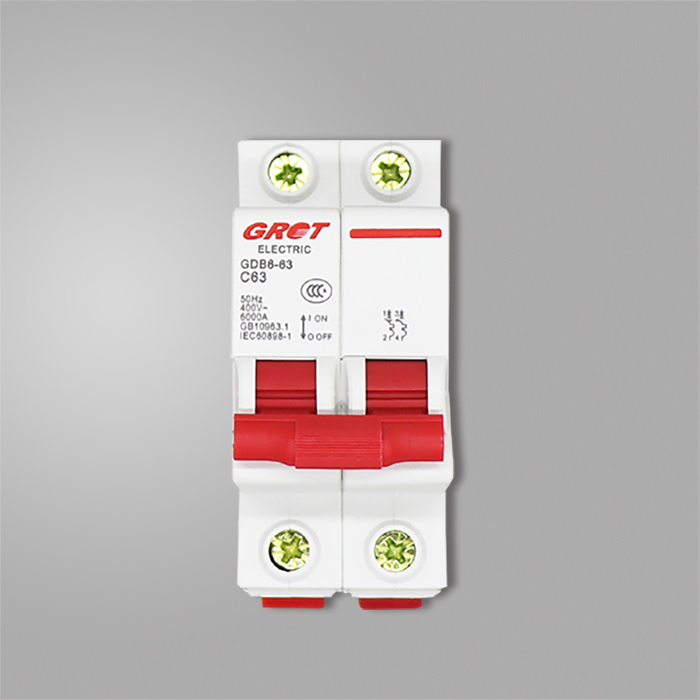

Miniature circuit-breater — GDB6-63
GDB6-63 series high-breaking miniature circuit breaker is suitable for AC 50Hz (60Hz), rated working voltage (1P) 230V/(2P, 3P, 4P) 400V, rated current up to 63A. The circuit breaker has advanced structure, reliable performance, high breaking capacity and modern outlook, used for overload and short circuit protection. It can also be used as an infrequent on-off operation and lighting. The protection characteristic is a C-type.
Comply with the IEC60898-1、GB/T 10963.1 Standard
Frame Size：63
Current Grade：6-63A
Switching Capacity：Ics=Icn=6 kA；
Poles：1P、2P、3P、4P
Product inquiry
Telephone
WeChat

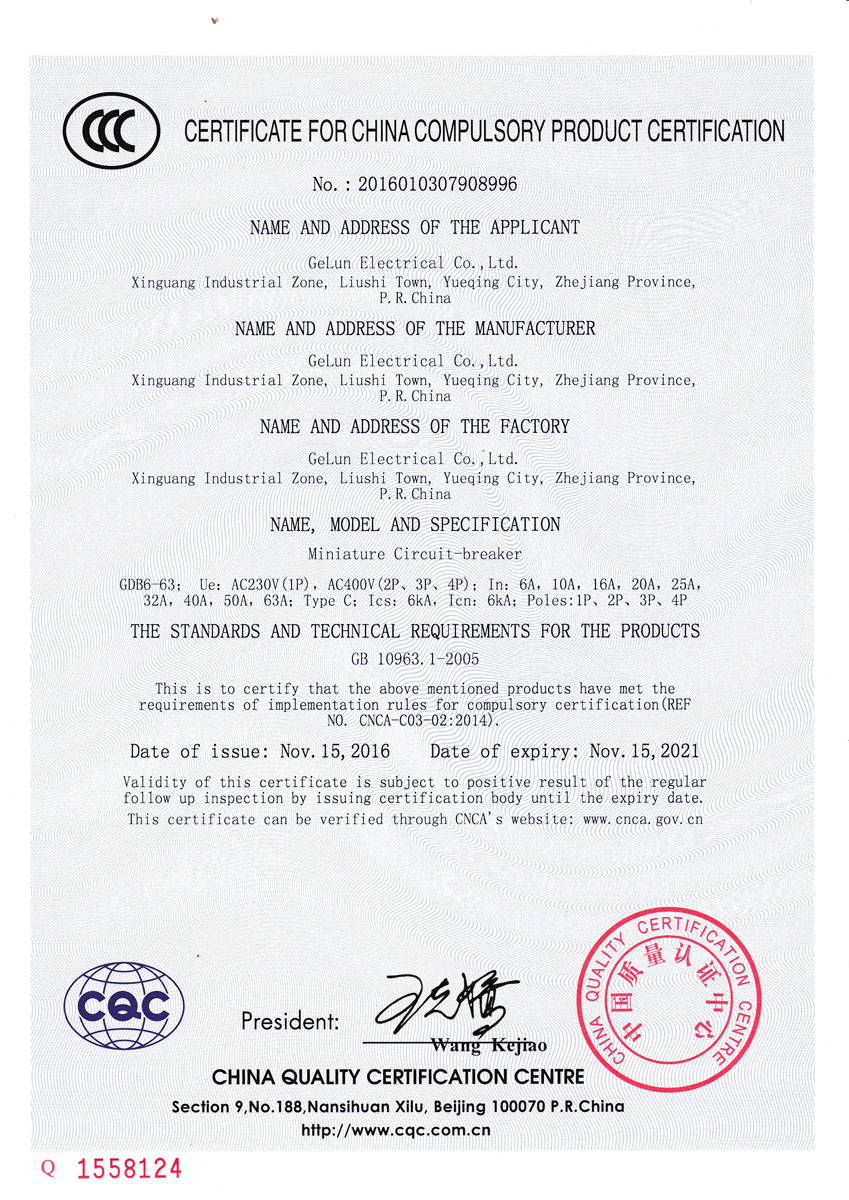

GDB6-631Certificate
